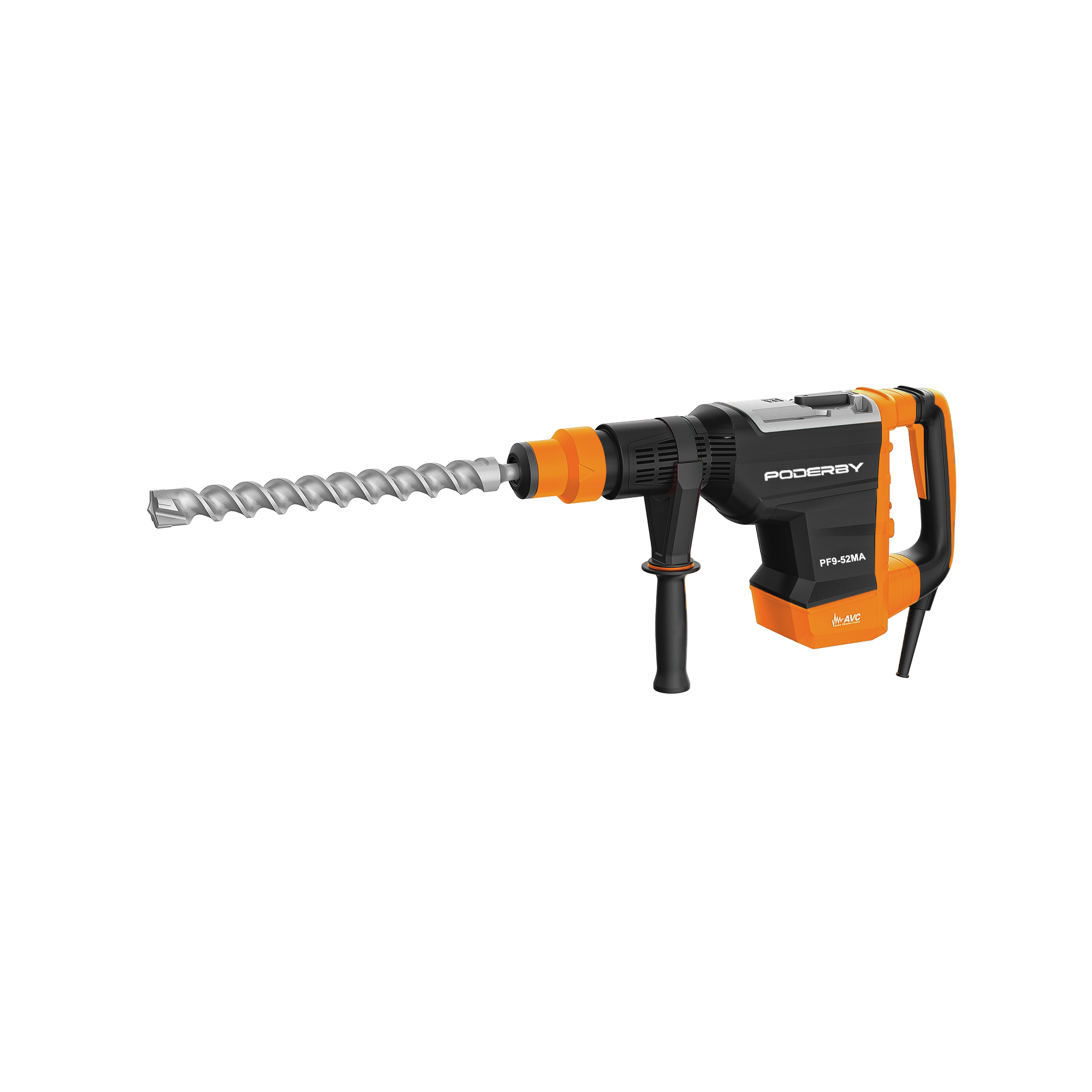

ROTARY HAMMER 9-52
ROTARY HAMMER 9-52
Specification
Item Specification
Rated Voltage (V~) 120
Frequency (Hz) 60
Rated Input (W / Amps) 1500 W / 14 A
No-load Speed (rpm) 150–305
Impact Rate at Rated Speed (bpm) 1380–2750
Impact Energy (J) 2–15 J (1.5–11 ft.lbs)
Tool Holder SDS-Max
Drilling Capacity
Max. Drilling Diameter – Concrete Ø52 mm
Optimum Application Range – Concrete Ø20–Ø45 mm
Max. Concrete Core Cutter Diameter Ø125 mm
Size & Weight
Weight (kg, based on EPTA) 9.1
Product Size (mm) 560 × 280 × 112
Packing Data
Unit Quantity 1 pc
Case Type BMC / ABS
Case Size BMC: 635 × 150 × 430 mm / ABS: 595 × 157 × 430 mm
Gross / Net Weight BMC: 14 / 13 kg · ABS: 13.5 / 12.5 kg
Loading Quantity (20ft Container) 720 pcs

Features

  • Dual operating modes: rotary drilling and hammer-only (with idle position)

  • 12-position chisel angle adjustment for flexible working angles

  • Ergonomic soft-grip handle with trigger switch

  • 6-step variable speed control with constant speed regulation

  • Power supply indicator

  • Carbon brush maintenance indicator

  • Low vibration and low noise design with high impact energy

  • 360° adjustable auxiliary handle

  • Safety clutch protection

  • Hammer lock function
